Filtered Triaxial Accelerometer

Depew, NY -The Vibration Division of PCB Piezotronics, Inc. has introduced a new miniature, lightweight ICP® triaxial accelerometer that simultaneously measures vibration in three orthogonal directions. The sensor features built-in filtering, which allows frequencies of interest in the useable range to pass unchanged. It will also eliminate high frequencies due to metal-to-metal impact (such as gear mesh or drivetrain noise), therefore minimizing the potential of sensor overload and erroneous measurements.

Model 356A66 has built-in signal conditioning microelectronics to produce low-impedance voltage outputs that can be transmitted over long cable lengths and is protected inside a precision-machined, hermetically sealed titanium housing. Sensitivity rating of 10 mV/g with a 500 g peak measurement range is standard, while a high temperature option for applications that require up to 3250 F⁰ (1630 C⁰) is available. Typical applications include automotive test cells, engine studies, NVH, dynamometer, track testing and off-road testing.

For additional information on this accelerometer, contact the Vibration Division of PCB Piezotronics, Inc., toll-free at 888-684-0013; E-mail: vibration@pcb.com; or fax at 716-685-3886. For other PCB products, contact PCB directly at 716-684-0001, or visit our web site at www.pcb.com

Technical:

Bill Coffta, Inside Sales Manager,

Vibration Division

3425 Walden Avenue

Depew, NY 14043-2495, USA

Tel: (888) 684-0013, fax: (716) 685-3886

E-mail: caszkler@pcb.com

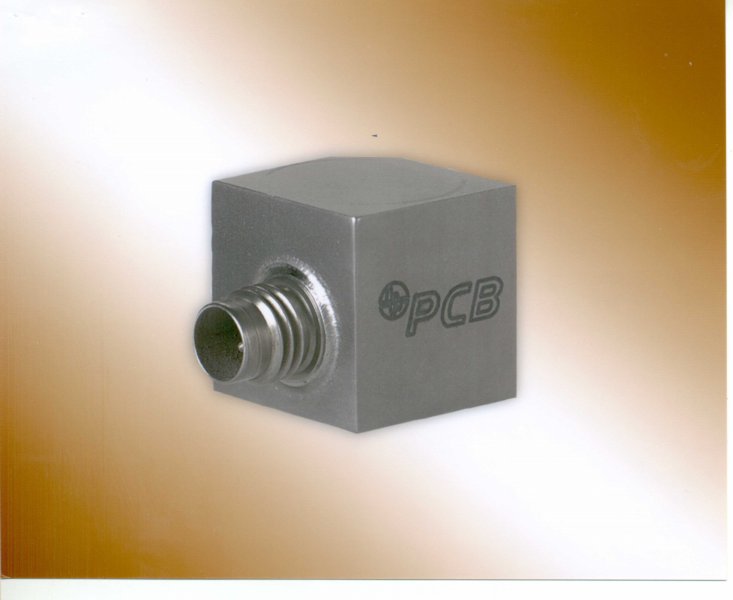

Click picture to see full screen photo
