The 5300 Series Wet/Wet Differential Pressure Sensors



IRVINE, CA. – Sensor System Solutions, Inc. has announced its improved Wet/Wet Differential Pressure Sensor Model 5300 which is targeted to the HVAC, Water Management, Process Control System, Hydraulic System, Filtration, Refrigeration, Compressor, Ocean Vessel and Aerospace markets.



The unit is available in five standard pressure range configurations (5, 15, 30, 100 and 300 psid) as well as available for OEM customizations. It features a standard 4-20 mA amplified output and has both Unamplified mV and Amplified 1-5 V outputs as available options.



In addition, the unit is equipped with a ¼”-18 NPTM Port or can be optionally outfitted with a ¼-27 NPTF Port. Other configurations are available based upon custom quotations.



It features a 3 foot shielded cable as it standard electrical connection and can be optionally equipped with a 4 pin Mini-Din connector or any other customized requirement for large volume requirements.



The unit sports the new 3S logo and can carry the OEM client’s SKU numbering if so desired.



The sensor is resistant to the measured media and is a superb solution for applications with corrosive media environments compatible with 316L stainless steel.





Contact:



Roger Sullivan

VP Sales & Marketing

Tel.: (949) 855-6688 ext. 118

E-mail: sales1@corp3s.com

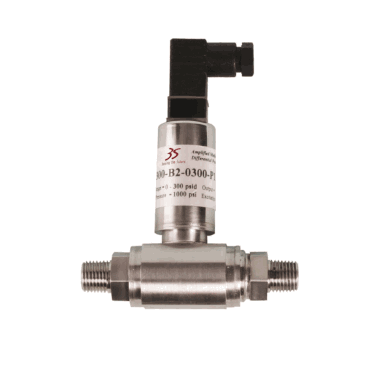

Pressure Sensor Model 5300
