New Low-pressure-drop Digital Flow Meter

Swiss sensor manufacturer Sensirion is launching the new digital SFM3000 mass flow meter for high-volume applications in medical devices, process automation and burner control. The flow channel is designed to achieve a very low pressure drop of less than 3 mbar through the sensor element. The flow meter bi-directionally measures the flow of air and other non-aggressive gases at rates up to 200 slm with high accuracy and very high speed. It outputs a 14-bit digital signal at a 2 kHz update rate. The signal is internally linearized and tempera-ture compensated. Furthermore, the new mass flow meter operates from a 5 Vdc supply voltage and features a digital 2-wire interface, mak-ing it easy to connect directly to a microcontroller.

The outstanding performance of the SFM3000 gas flow sensor is based on Sensirion’s patented CMOSens® Technology, which combines the sensor element, signal processing and digital calibration on a tiny microchip. Gas flow is measured by a thermal sensor element to provide an extended dynamic range and enhanced long-term stability compared to other flow measuring technologies. Thanks to the proven CMOSens® technology, the flow meter is suited for high-quality mass produc-tion and is the ideal choice for demanding and cost-sensitive OEM applications in medical ventilation and anesthesia, as well as process automation and burner control.

About Sensirion

The Swiss sensor manufacturer Sensirion AG is a leading international supplier of CMOS-based sensor components and systems. Its range of high-quality products includes humidity and temperature sensors, mass flow meters and controllers, gas and liquid flow sensors, and differential pressure sensors. Sensirion supports its international OEM customers with tailor-made sensor system solutions for a wide variety of applications. Among others, they include analytical instruments, con-sumer goods, and applications in the medical technology, automotive and HVAC sectors. Sensirion products are distin-guished by their use of patented CMOSens® technology. This enables customers to benefit from intelligent system integra-tion, including calibration and digital interfaces. Sensirion’s competence as a reliable OEM partner is underlined by its quality management system, in accordance with the ISO/TS 16949 standard.

Contact:

Barbara.Thurnherr

Sensirion
Laubisruetistrasse 50
CH-8712 Staefa ZH, Switzerland
Tel.: +41 44 306 40 00, +41 44 306 49 93
Fax: +41 44 306 40 30
E-mail: barbara.thurnherr@sensirion.com

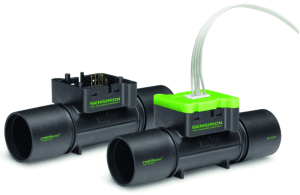

Digital SFM3000 mass flow meter
