Universal Single Channel Telemetry System



Farmington Hills, MI, USA PCB Load & Torque, Inc., introduces their new Series 8179 Universal Single Channel Telemetry Systems. These systems provide a simple, accurate method of transmitting strain torque, thermocouple or voltage signals on rotating or moving machinery while operating in a completely contactless mode. Power is transferred inductively and the signal is RF-transferred between the moving and static component no brushes or wires required. This method guarantees an absolute maintenance-free continuous operation and accurate transmission of measured data.



The Universal Single Channel Telemetry System is compact in size and light weight which allows for quick and easy installations in areas where space is at a premium without affecting the dynamic properties of the shaft. The universal receiving electronics allows the user to power and condition strain gage, thermocouple, or voltage sensors from a single module. Power transmission to the rotor electronics and return signal transmission to the stator is accomplished via a transmission band wrapped around the shaft. Alternatively, power can be derived from an on-shaft battery.



Data is transmitted contact-free from the transmission band to the stator and then carried to the control unit, where it is demodulated and converted back to an analog value. An optional hoop antenna is available in lieu of the stator to allow for greater articulation of the measured shaft. The signals can be read directly on the control unit display or fed into further acquisition equipment.



PCB Series 8179 also includes a remote shunt-calibration feature that enables strain gage configurations to be checked, even during measurement.



PCB Load & Toque, Inc. is a manufacturer of load cells and torque transducers located in Farmington Hills, Michigan, USA supported with a dedicated technical sales and support group. RS Technologies, a division of PCB Load & Torque Inc., designs and manufactures fastener technology test systems and threaded fastener torque/angle/tension systems.  All products are ideal for use in the Automotive, Aerospace & Defense, Power Generation, and numerous other test and measurement applications.  The PCB team of Design, Engineering, Sales, and Customer Service individuals, draw upon vast in-house manufacturing resources to continually provide new, more beneficial sensing solutions.  From ready-to-ship stock products, to custom-made specials, PCB proudly stands behind all products with services customers value most, including our 24-hour customer support, strategic global distribution network, and industry-exclusive Lifetime Warranty Plus and Best Price Guarantee. For more information about PCB Load & Torque visit www.pcbloadtorque.com













Contact:



Jennifer Beal,

Marketing Coordinator

PCB Load & Torque

Tel.: 716-684-0001

E-mail: prospects@pcb.com

Http://www.pcbloadtorque.com

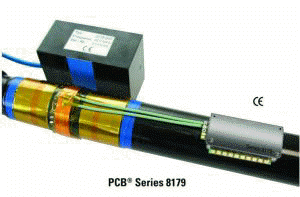

Series 8179 Universal Single Channel Telemetry Systems
