Triaxial Force Sensor Monitors Machine Tools and Presses



The new Model 263A01 Industrial Triaxial Force Sensor from the Force/Torque Division of PCB Piezotronics, Inc. simultaneously measures indirect or direct dynamic and quasi-static forces in three orthogonal directions (x-, y-, and z-axes). Sensors are used to detect machinery overloads and collisions, as well as to monitor broken or missing tools in lathes, presses, broaches, and other machine tool applications.



Tool monitoring with three-component force sensors reduces costs and improves product quality by protecting expensive machinery, tooling, and tool holders, minimizing machine down time, and reducing scrap and rework.



The sensor provides an amplified, low-impedance voltage output signal, proportional to force, which is compatible with readout instrumentation and machine control equipment. Features include remote reset ( 5 VDC), long discharge time constant (> 100,000 seconds), rugged construction for harsh industrial environments, and integral 5 m (16.4 ft) cable. Single axis models are also available.



For additional information, contact the Force/Torque Division of PCB Piezotronics, Inc. toll-free at 888-684-0004 (in the U.S. and Canada) or 716-684-0001; e-mail: force@pcb.com; fax 716-684-8877; or visit PCB's web site at www.pcb.com





Technical:



Peter Munschauer, Division Manager

Force/Torque Division

3425 Walden Avenue

Depew, NY  14043-2495 USA

Tel: (888) 684-0004 ext. 2405, fax:  (716) 684-8877

E-Mail: pmunschauer@pcb.com

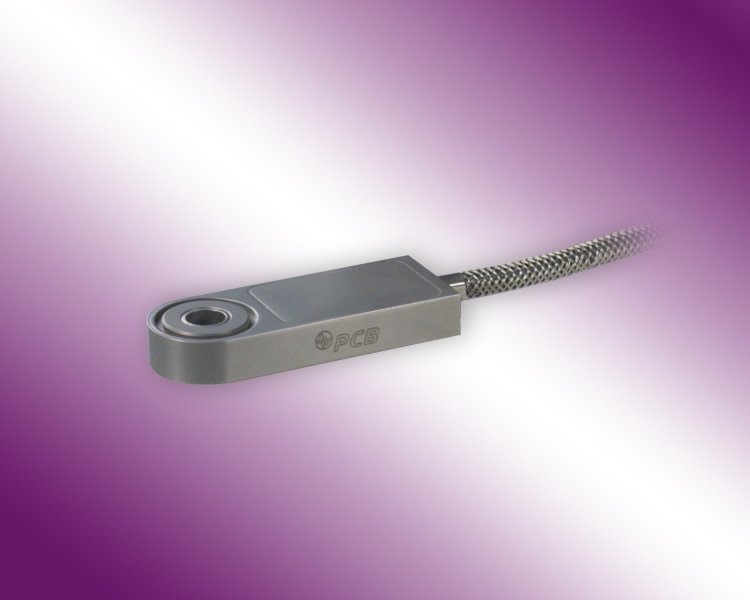

Model 263A01 Industrial Triaxial Force Sensor
