Linear Displacement Transducers





Machine manufacturers often need to control positions of hydraulic cylinders, rolls,  calenders, actuators etc. in order to have a process control on their machines.



DS Europe, in order to satisfy this need, is proposing series PC magnetostrictive position transducers. Series PC is measuring absolute positions without contact and wear between cursor and transducer probe and can withstand in a good way shocks, vibrations and dirtyness ( IP65 ).



Series PC can measure up to two cursor positions, It has a check up system for an easy installation and can measure also velocities.



Main features are:

Measuring ranges: 0 to 100 up to 3000mm FS.

Outputs: 0-10V, 4-20mA, RS485, RS422, Start-Stop, SSI, CANopen

Resolution: from 0,046mm (up to 0,005mm option).



DS Europe produces mod. PCS for linear position (with cursor ring for hydraulic cylinders) and with float for liquid level measures (wet parts are welded stainless steel) and mod. PCR with slide cursors (substituting encoders and potentiometers).

Applications: presses, dancing roll position on textile or converting machines,  plastic blowing machines, ceramic and marble machines, liquid batching machines, wood-working machines, paper machines, drilling machines, machine tools and where it is necessary to have high long term reliability.



Contact:



Dario Piardi,

DS Europe S.r.L.,

Tel: 0039 02 8910142, fax: 0039 02 89124848

E-mail: dseurope@dseurope.com

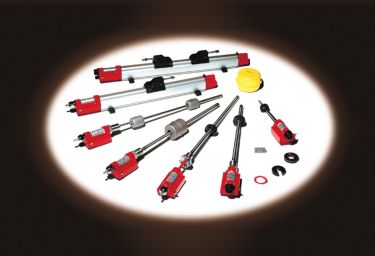

Displacement transducers
