RotaryPoint, Small Footprint, Rotary Paddle Bin Level Indicator for Bulk Solids Applications





Houston, TX - ASI Instruments announced RotaryPoint, a new low-cost rotary paddle bin level indicator. RotaryPoint is a rugged, small footprint device whose heavy-duty motor gearing provides up to twice the life expectancy of other paddle indicators. Designed for measuring the level of dry bulk solids in hoppers, silos, bins, and tanks, the system handles materials with densities of 10 lbs/ft3 or more, including grains, plastic pellets, even high density aggregates like limestone and rocks.



With RotaryPoint, there are no more screws or fasteners to hinder access; the unit features a twist-on cover for quick access to wiring. The indicator can be mounted on the top of bins or on the side to indicate high, intermediate, or low levels. Two 20 A single pole-double throw (SPDT) reed switches allow activation of alarms and controls, including visual indicators or conveyor belts. Stainless steel mounting plates are standard, allowing the device to be a drop-in replacement for virtually any other paddle switch. Flexible shaft couplings, extended shafts, and shaft guards are available for protected operation of the rotating paddle in almost any position and orientation. For hazardous applications, RotaryPoint provides FM Approved and CSA Certified housing options.





Contact:



Kevin Hambrice,

Director of Marketing,

ASI Instruments, Inc.,

8570 Katy Freeway, Suite 117,

Houston TX 77024 USA

Tel.:800.245.7056, +1 225.673.6100

Fax: +1 713.461.7348

E-mail: khambrice@asiinstruments.com

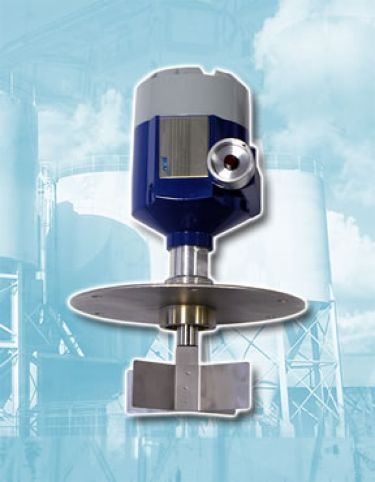

Level indicator
